    Construction Scaffolding Ringlock System CE SGS Approved AS 1576.3

    Ask Lasest Price
    Brand Name : Liangming
    Model Number : LMRLS001
    Price : US $930.00 ~1250.00 /TON
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Tons/Month
    Delivery Time : 20-35 days
    Certification : CE SGS
    • Product Details
    • Company Profile

    Construction Scaffolding Ringlock System CE SGS Approved AS 1576.3

    Ringlock system

    Ringlock scaffolding the most widely used construction scaffolding system, also known as compachrysanthemum scaffolding, mainly used for construction sites, large concert lighting frames and background stage frames.

    The socket of this scaffold is a round ring with a diameter of 123mm and thickness of 10mm.

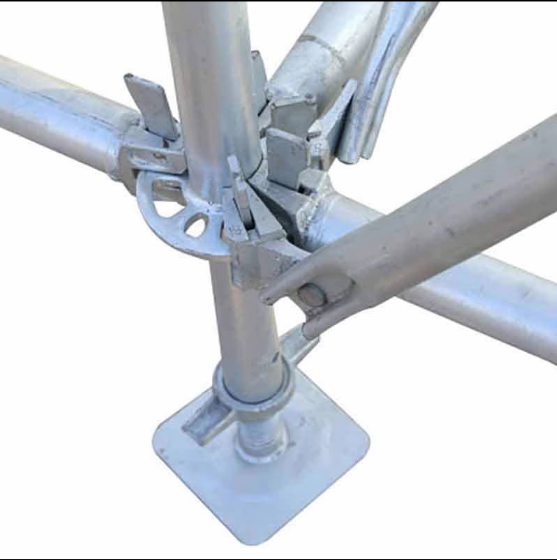

    There are 8 holes on the round socket. The round sockets are welded on a certain length of steel pipe every 0.5m called vertical, connecting with Ledger and Diagonal brace, bottom supported by Base Jack to set up a system

    The main components are made of φ48.3*3.25mm size and Q345, Q235 international standard steel tubes, blades welded at the both ends of tubes.

    The Ringlock scaffoldings are included by Standard, Horizontal Ledger, Diagonal Brace, Jack Base, Steel Planks, Bracket and so on. Hot-dip galvanized or Electro-galvanized surface treatment are available as your requested.

    Efficiency of assembly
    • Low maintenance required to keep in top working condition
    • Versatility of application
    • Simplicity of components and their connection
    • Galvanized components improve corrosion resistance
    • No special tools required for assembly (hammer and spirit level only)

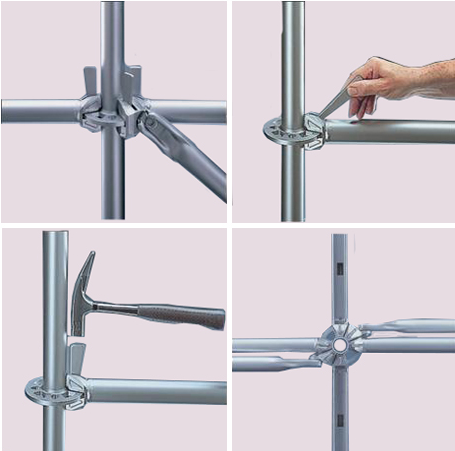

    EASY TO ERECT
    The Vertical features robust rosettes onto which all
    horizontal and diagonal components attach. The simple
    connection between components ensures ease of
    erection and dismantling. No additional loose parts are
    required to join components in the system.


    VERSATILE IN USE

    With the flexibility to connect at eight positions around the rosette on the Vertical post, Ringlock
    can be used to go around curved or angled structures.

    PROVEN DESIGN WITH SAFETY ACCESSORIESThe

    Ringlock system has a proven performance history
    on an extensive number of sites, meeting the
    requirements of the various statutory bodies. A full range
    of accessories is available to cater for safety requirements
    such as guardrails, catwalk, ladder access, staircase
    access and components to provide overhead protection.





    The following values for Ringlock junction specifications are per the HOKLAS testing results.

    NORMAL FORCE

    Load on the connecting rosette and the
    wedge lock by tensile and compressive
    forces (longitudinal forces) along the axis
    of the horizontal member.
    Permissible N = ± 31.80 kN
    (Breaking load as 63.60 kN)
    VERTICAL SHEAR FORCE

    Acting on the horizontal members of the

    junction and on the connecting rosettes.

    Permissible Qv = + 16.92 kN

    (Breaking load as 33.84 kN)

    Maximum Total Qv total junction

    = 4 X 16.92 kN

    = 67.68 kN


    HORIZONTAL SHEAR FORCE

    Acting on the junctions together with the

    connecting rosette and the connecting

    horizontal member.

    Permissible Qh = ± 8.425 kN

    (Breaking load as 16.85 kN)


    CONNECTION MOMENT

    Acting on the Ringlock Junctions

    Permissible M = ± 91 kNcm.

    (Max. design testing load 182 kNcm)
