Frame scaffolding
Frame scaffolding is one of the most widely used scaffolding frame
scaffolding has a simple
disassembly,good bearing performance,safety and reliability.Typically manufactured from round tubing, the frame scaffolding is
available. The typical method of constructing frame scaffolding is to use two
sections of the scaffold frame connected by two crossed sections of
support poles arranged in a square configuration. Pins rising out of the corner poles of a section of frame
scaffolding fit into recesses in the bottom of the corner poles of
the section being stacked onto the lower section. Pin clips are placed through the connection to prevent the sections
from coming apart. Boards or aluminum deck planks are placed across the completed
frame scaffolding sections. The Frame system is divided into H frame and walkthrough frame. Mainly composed of mainframe, cross brace, catwalk, and base jack.
Frame scaffolding main application:
1.For the top branch building,halls,bridages,viaducts,tunnels and
other forwork support within
the top.
2.Inside and outside the row grid scaffolding of high-rise
building.
3.For active work platform of electrical installation,hull built
and other renovation works.
4.For temporary dormitory,warehouse or shed.
5.For the erection of temporary grandstands and bleachers.
Fast Lock Frame(1.625"OD)
Box Frame
 | Item Code | Width | Height |
| WFLF001 | 3'(914.4) | 6'7"(2006.6) |
| WFLF002 | 5'(1524) | 6'7"(2006.6) |
| WFLF003 | 4'2”(1066.8) | 6'7"(2006.6) |
Mason Frame
 | Item Code | Width | Height |
| WFLF004 | 5'(1524) | 3'1"(939.8) |
| WFLF005 | 5'(1524) | 4'1"(1244.6) |
| WFLF006 | 5'(1524) | 5'1"(1549.4) |
| WFLF007 | 5'(1524) | 6'7"(2006.6) |

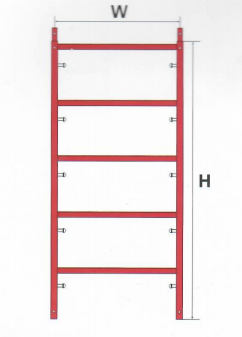

Ladder Frame
 | Item Code | Width | Height |
| WFLF008 | 275/8”(701.675) | 3'1"(939.8) |
| WFLF009 | 275/8”(701.675) | 5'1"(1549.4) |
| WFLF010 | 275/8”(701.675) | 6'7"(2006.6) |
| WFLF011 | 3'(914.4) | 5'1"(1549.4) |
| WFLF012 | 3'(914.4) | 6'7"(2006.6) |
Snap On Lock Frame (1.625"OD)
Box Frame
 | Item Code | Width | Height |
| WSF01 | 3'(914.4) | 4'(1219.2) |
| WSF02 | 3'(914.4) | 20"(508) |
| wSF03 | 3'(914.4) | 40”(1016) |
| WSF04 | 5'(1524) | 20"(508) |
| WSF05 | 5'(1524) | 40"(1016) |
Mason Frame
 | Item Code | Width | Height |
| WSF06 | 5'(1524) | 4'(1219.2) |
| WSF07 | 5'(1524) | 5'(1524) |
| WSF08 | 5'(1524) | 6'8"(2032) |
Ladder Frame
 | Item Code | Width | Height |
| WSF09 | 2'(609.6) | 5'(1524) |
| WSF010 | 2'(609.6) | 6'8"(2032) |
| WSF011 | 3'(914.4) | 6'8"(2032) |
| WSF012 | 3'(914.4) | 5'(1524) |
Flip Lock Frame (1.625"OD)
Box Frame
 | Item Code | Width | Height |
| WFF01 | 3'(914.4) | 5'1''(1549.4) |
| WFF02 | 3'(914.4) | 6'7''(2006.6) |
| WFF03 | 5'(1524) | 6'7''(2006.6) |
Mason Frame
 | Item Code | Width | Height |
| WFF04 | 5'(1524) | 2'1"(635) |
| WFF05 | 5'(1524) | 3'1"(939.8) |
| WFF06 | 5'(1524) | 4'1"(1244.6) |
| WFF07 | 5'(1524) | 5'1"(1549.4) |
| WFF08 | 5'(1524) | 6'7''(2006.6) |
Ladder Frame
 | Item Code | Width | Height |
| WFF09 | 3'(914.4) | 3'1"(939.8) |
| WFF010 | 3'(914.4) | 4'1"(1244.6) |
| WFF011 | 3'(914.4) | 5'1"(1549.4) |
| WFF012 | 3'(914.4) | 6'7''(2006.6) |
| WFF013 | 29"(736.6) | 5'(1524) |
| WFF014 | 29"(736.6) | 6'7''(2006.6) |
Drop Lock Frame (1.625"OD)
Box Frame
 | Item Code | Width | Height |
| WDF01 | 3'(914.4) | 5'(1524) |
| WDF02 | 3'(914.4) | 6'4''(1930.4) |
| WDF03 | 42"(1066.8) | 6'4''(1930.4) |
| WDF04 | 5'(1524) | 6'4''(1930.4) |
Mason Frame
| Item Code | Width | Height |
| WDF05 | 5'(1524) | 3' (914.4) |
| WDF06 | 5'(1524) | 4' (1930.4) |
| WDF07 | 5'(1524) | 5' (1524) |
| WDF08 | 5'(1524) | 6'4'' (1930.4) |
Ladder Frame
 | Item Code | Width | Height |
| WDF09 | 2'(609.6) | 3' (914.4) |
| WDF010 | 2'(609.6) | 5'(1524) |
| WDF011 | 2'(609.6) | 6'4'' (1930.4) |
Production and process

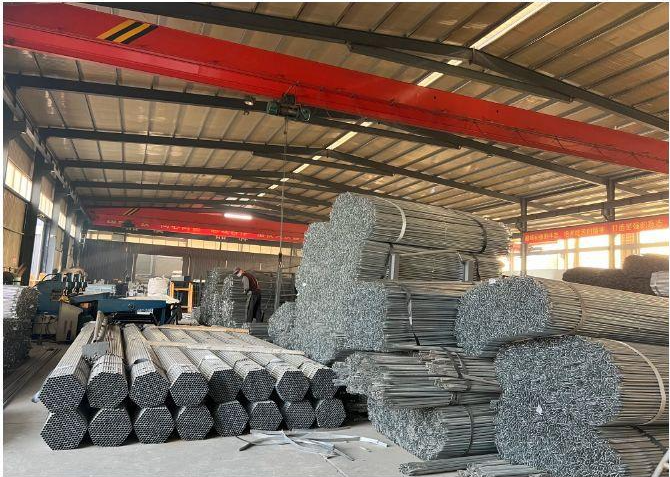

Factory and warehouse
